Features

• Meets Class I, Division 2, Group D requirements specified in NFPA Pamphlets 58 and 70.
• Thermal efficiency exceeds 97%.
• 100% Turndown capability.
• Pressure vessels designed to ASME specifications.
• UL stamped external relief valve for each core: 250 psig ( 17.6 kg /cm²).
• State of the art microprocessor based control system with digital indicator for status / problem code display.
• Rain-tight NEMA 4 enclosure with status lights protects electrical control components.
• Float activated high liquid level safety. Two independent, direct monitoring, high-temperature safety shutdown devices.
• Integral inlet safety solenoid valve.
• Minimum 15°F (8.4°C] superheat at 100% capacity.
• Cross linked polyethylene insulation jacket.
• Pressure balanced LPG supply / delivery operation.
• Wide range of available voltages: 575, 480, 415, 380, 50/60hz.
• Complete with all operating and safety controls.
• Ready to connect to plant facilities.
• Automatic restart after electric power interruption. Explosion proof electrical configuration (Class I, Division 1, Group D).
• Economy operation.
• Remote alarm output.
• Remote control panel.


Advantages

• Safely and efficiently vaporizes LPG for commercial, industrial, and utility applications.

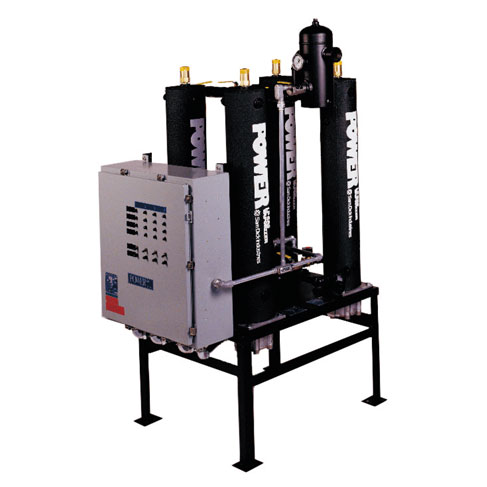

• The multiple core design consists of the proven P-Series electric vaporizer, factory connected in parallel to provide greater vaporization capacity.
• Waterless electric vaporizer.
• No corrosion or rust.
• No refilling.
• No sediment.
• No burned out heater elements.
• Two safety devices to ensure dry superheated LPG.
• Requires only 40-50 seconds to reach operating temperature from a cold start.
• Complete with all safeties and controls requires no additional remote mounted controls for operation.
• Available in explosion proof or nonincendive configuration.
• Innovative liquid vaporizing and gas mixing solutions.
