Features

　　-Tee style inlet and outlet connections - made from ductileiron.

　　-Incorporate integral large 2" F.NPT relief vents.

　　-Built in pressure taps for both inlet and outlet pressure.

　　-Full capacity relief at 10 psig inlet will keep the down stream pressure at less than 2 PSIG per NFPA 58.

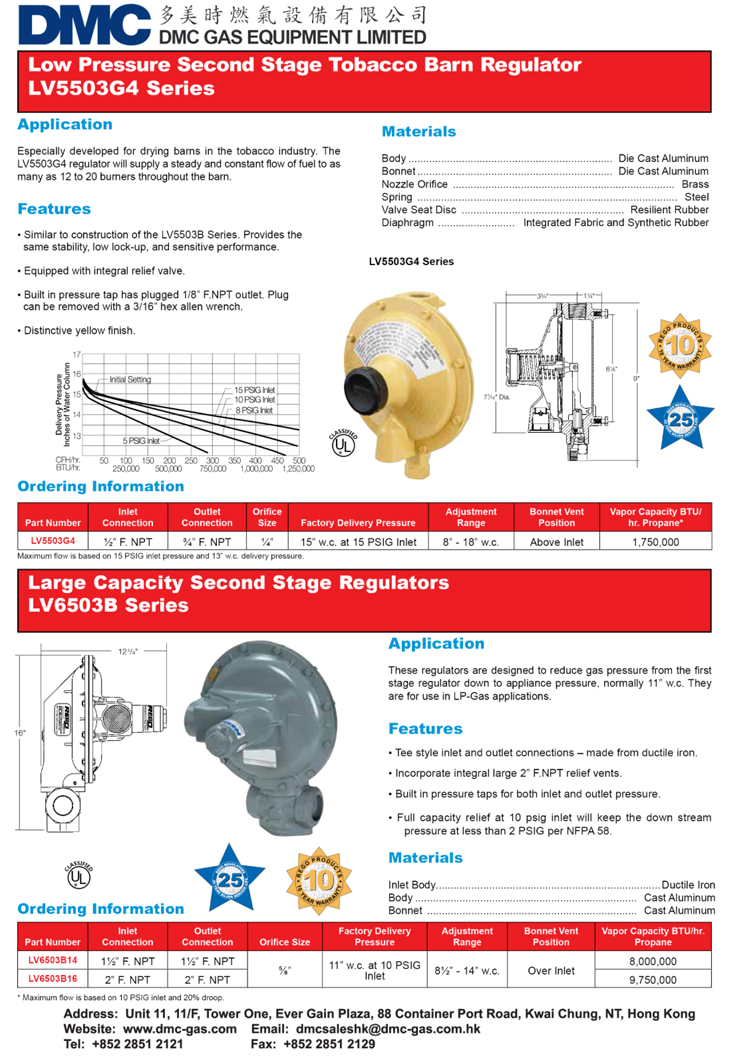

Application

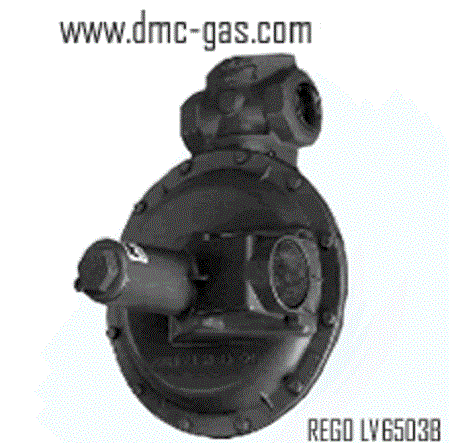

　　These regulators are designed to reduce gas pressure from the first stage regulator down to appliance pressure, normally 11" w.c. They are for use in LP-Gas applications.
